0805 IR Transmitter Receiver Factory
- Lifespan > 50,000 hours
- Stable Signal in Complex Environments
- Precise Wavelengths: 850nm / 880nm / 940nm
- Wide Beam Angle: 10° ~ 120°
- Compliant with RoHS / REACH Standards
- Rapid Infrared Signal Acquisition
0805 IR Transmitter Receiver Expert Manufacturer

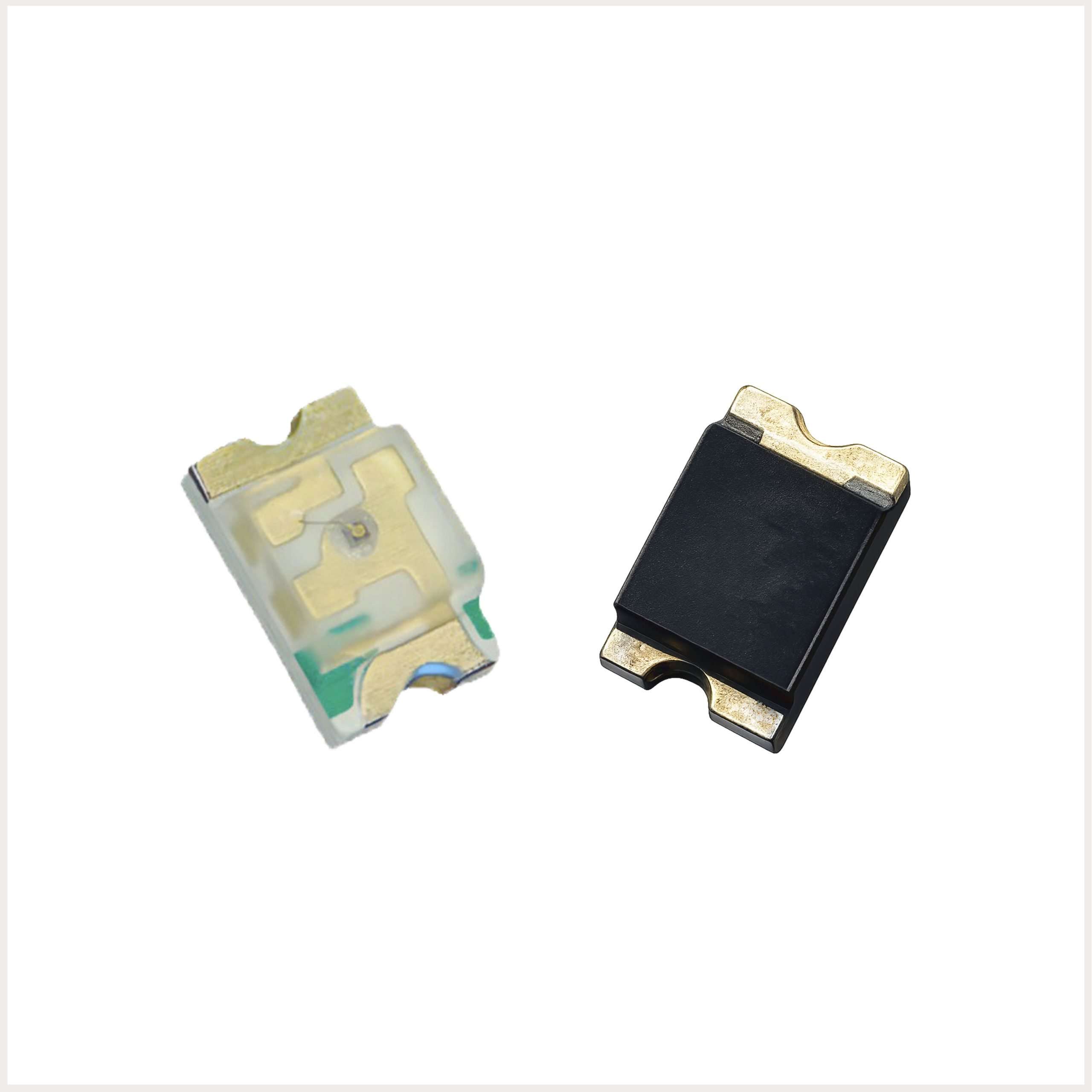

The 0805 IR Transmitter & Receiver Pair is a compact and reliable infrared solution designed for applications that require consistent signal transmission and dependable reception within limited PCB space.
With a standard 0805 SMD footprint, this IR pair offers an optimal balance between size and performance—larger than ultra-mini packages for improved optical efficiency, yet compact enough for modern electronic designs.
The IR transmitter provides stable infrared output, while the matched receiver ensures accurate signal detection with strong immunity to ambient light interference. Together, they form a well-balanced IR link suitable for short to medium range communication.
Manufactured under controlled production conditions, this IR pair delivers high consistency across batches, helping ensure uniform performance in scalable applications.
DY-0805 IR TX RX Convex Product Parameters
- Transmitter Parameter
- Receiver Parameter
- Inquiry & Supply Process
| Model | Lighting Angle | Condition | Forward Voltage | Radiation Intensity | Peak Wavelength |
| DY-0805IR-850 | 2θ1/2 120° | If=20mA | Typ:1.0V Max:1.6V | Min:20mW/Sr Typ:50mW/Sr | 850nm |
| DY-0805IR-940 | 2θ1/2 120° | If=20mA | Typ:1.0V Max:1.6V | Min:3mW/Sr Typ:5mW/Sr | 940nm |
| Model | Photo Current | Rise/Fall Time | Wavelength Range | Peak Wavelength |
| DY-0805IRJ-850 | Min:10uA Typ:25uA | Min:10/10nS Max:20/20nS | Min:700nm Max:1000nm | 850nm |
| DY-0805IRJ-940 | Min:20uA Typ:30uA | Min:45/45nS Max:50/50nS | Min:860nm Max:1000nm | 940nm |
Inquiry Submission
Submit your inquiry request, providing the required model, specifications, or compatible brand model (for example, VS1838B). At the same time, we can also provide basic technical information and application requirements for reference.
Technical Evaluation
Engineers will recommend suitable infrared receiver models based on the application scenario to ensure compatibility with system design and signal requirements.
Sample Arrangement
Provide engineering samples for functional verification, including reception distance, signal stability, and circuit compatibility.
Engineering Confirmation
After testing and validation, confirm key parameters and product specifications to support subsequent project development.
Mass Production Supply
Arrange stable mass production supply to support the customer’s production plan, ensuring product quality is stable and reliable.
