1204 IR Transmitter Receiver Factory
- Lifespan > 50,000 hours
- Stable Signal in Complex Environments
- Precise Wavelengths: 850nm / 880nm / 940nm
- Wide Beam Angle: 10° ~ 120°
- Compliant with RoHS / REACH Standards
- Rapid Infrared Signal Acquisition
1204 IR Transmitter Receiver Expert Manufacturer

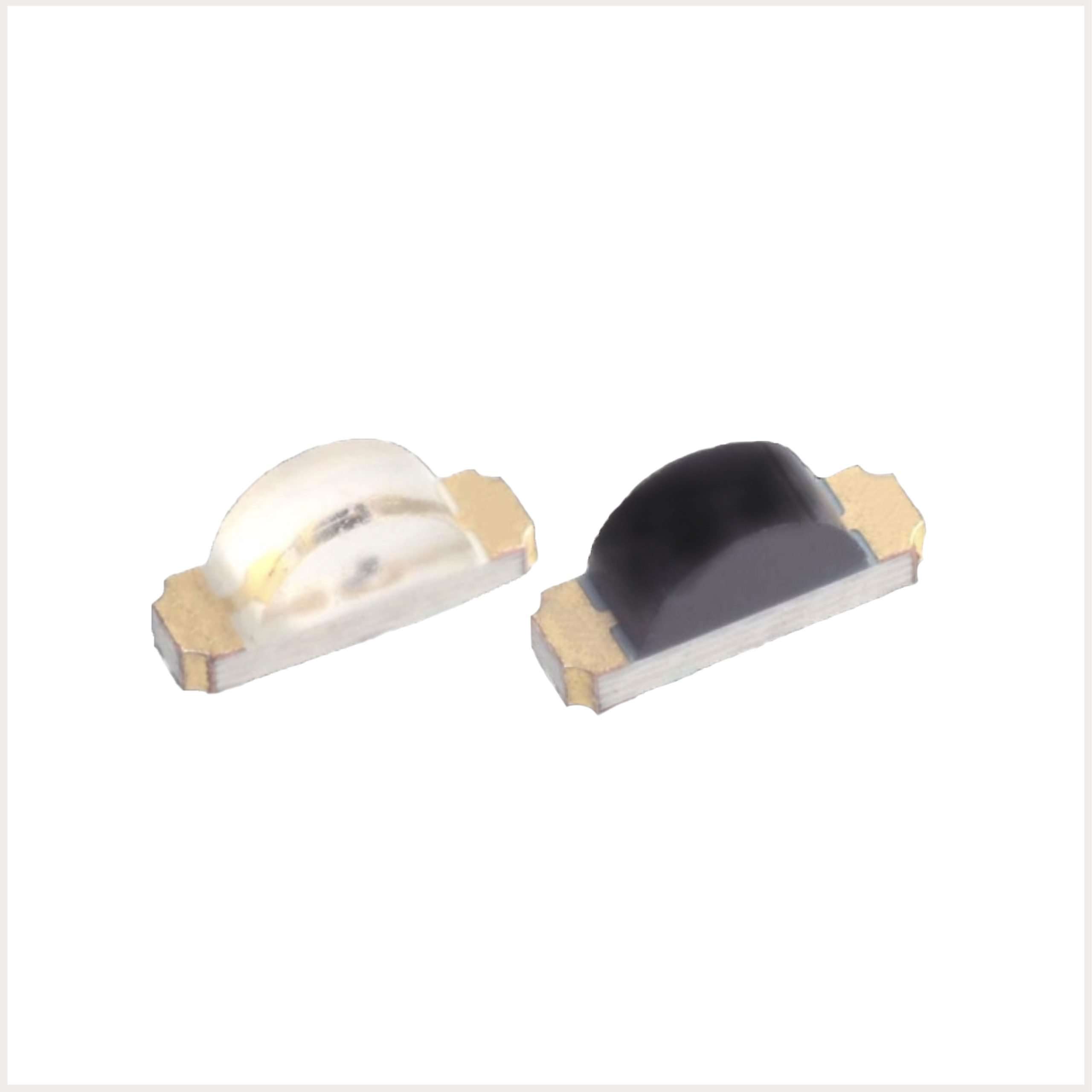

DY-1204 IR TX RX Convex Product Parameters
- Transmitter Parameter
- Receiver Parameter
- Inquiry & Supply Process
| Model | Lighting Angle | Condition | Forward Voltage | Radiation Intensity | Peak Wavelength |
| DY-1204IR-850 | 2θ1/2 75° | If=20mA | Typ:1.0V Max:1.6V | Min:20mW/Sr Typ:50mW/Sr | 850nm |
| DY-1204IR-940 | 2θ1/2 75° | If=20mA | Typ:1.0V Max:1.6V | Min:3mW/Sr Typ:5mW/Sr | 940nm |
| Model | Photo Current | Rise/Fall Time | Wavelength Range | Peak Wavelength |
| DY-1204IRJ-850 | Min:10uA Typ:25uA | Min:10/10nS Max:20/20nS | Min:700nm Max:1000nm | 850nm |
| DY-1204IRJ-940 | Min:20uA Typ:30uA | Min:45/45nS Max:50/50nS | Min:860nm Max:1000nm | 940nm |
Inquiry Submission
Submit your inquiry request, providing the required model, specifications, or compatible brand model (for example, VS1838B). At the same time, we can also provide basic technical information and application requirements for reference.
Technical Evaluation
Engineers will recommend suitable infrared receiver models based on the application scenario to ensure compatibility with system design and signal requirements.
Sample Arrangement
Provide engineering samples for functional verification, including reception distance, signal stability, and circuit compatibility.
Engineering Confirmation
After testing and validation, confirm key parameters and product specifications to support subsequent project development.
Mass Production Supply
Arrange stable mass production supply to support the customer’s production plan, ensuring product quality is stable and reliable.
