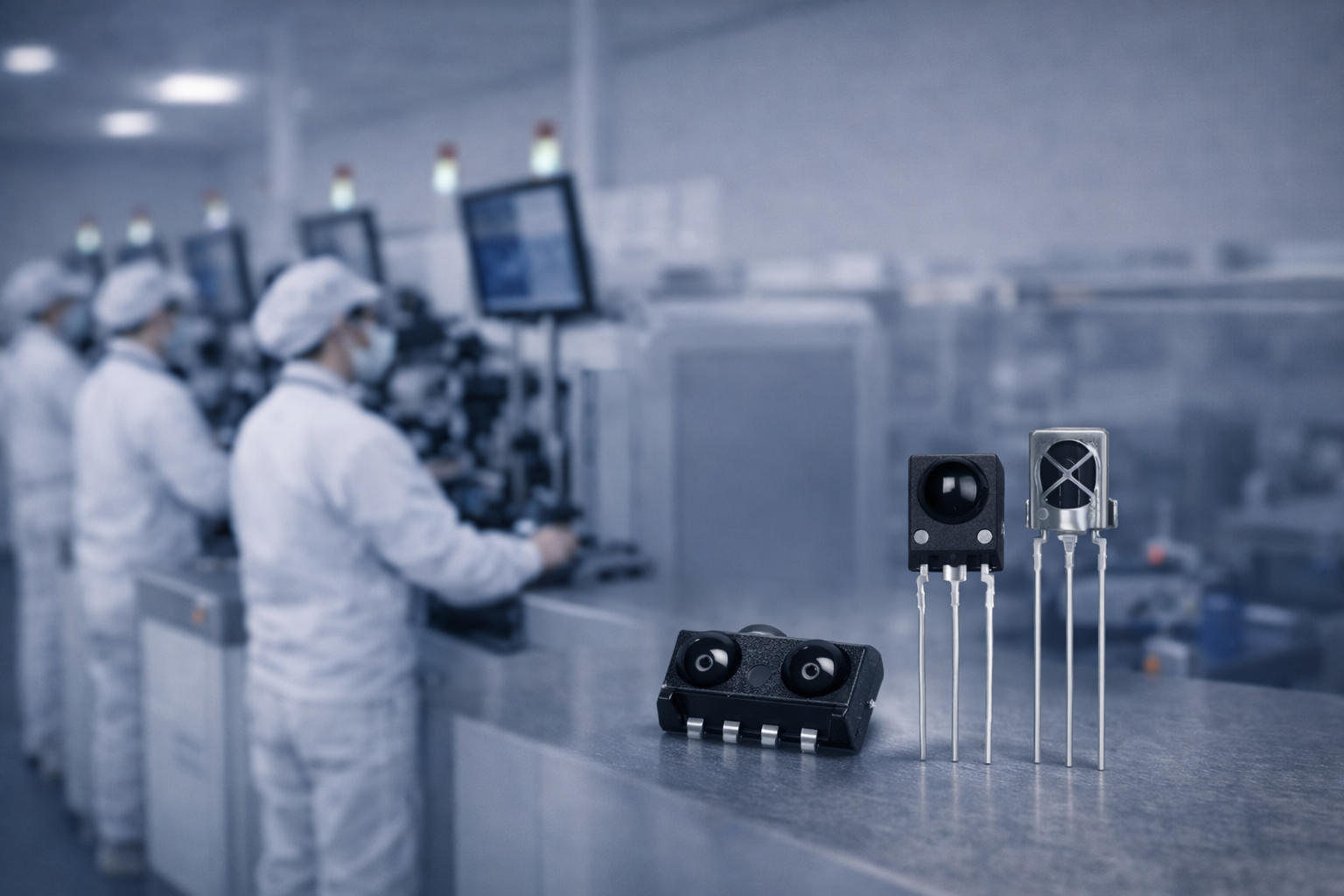

Surface Mount Infrared Receiver
Suitable for infrared control applications in automated placement and high-efficiency mass production.In SMT production conditions, it is more conducive to dimensional control and batch consistency.

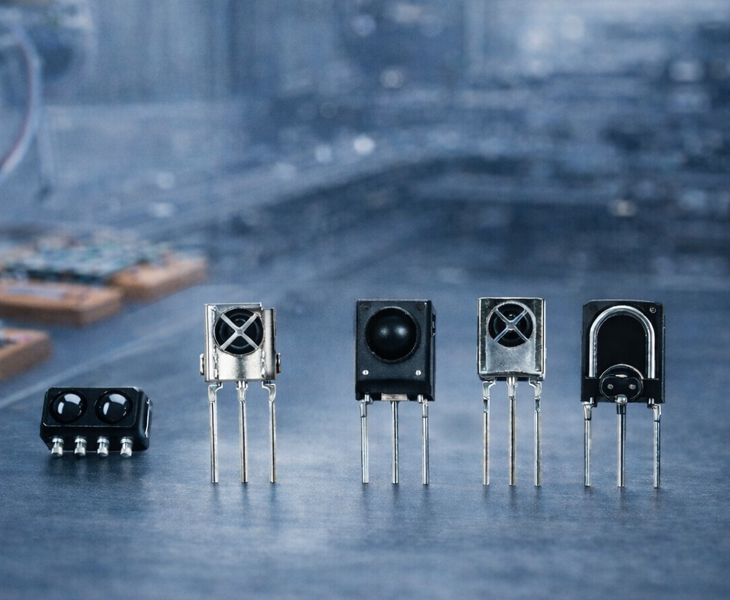

Optional SMD IR Receiver Head Models
The following are common surface-mount infrared receiver head models. Click on a specific model to view detailed specifications and parameters
DY-1050 Z Foot IR Receiver
DY-Single-head iron casing IR Receiver
Applicable Conditions
- SMT Automated Placement Production Line
- Specific limitations on board space and size
- High requirements for mass production efficiency
- Product structure primarily uses surface mount devices
Configuration Matching
- Meets different power consumption and response requirements
- Adapts to different decoding characteristics
- Coveres different center frequency and bandwidth requirements
- Judgment based on assembly method and application environment
- Uses test verification results as the final basis
Selection Points
- Receiving frequency and system protocol matching
- Light source and anti-interference requirements in the application environment
- Operating voltage range and output method compatibility
- Target working distance and sensitivity requirements
- Stability performance under SMT process conditions
Mass Production Judgment
- Consistent structure for samples, small batches, and mass production
- Test conditions are reproducible at different stages
- Key performance remains stable across batches
- Uses mass production consistency as the judgment basis
- Avoid decisions based solely on single sample performance
Verification Path
- Clearly define application conditions and key indicators
- Provide 1–2 testable configuration schemes
- Sample verification → Small batch trial production
- Stable supply begins after conditions are met
